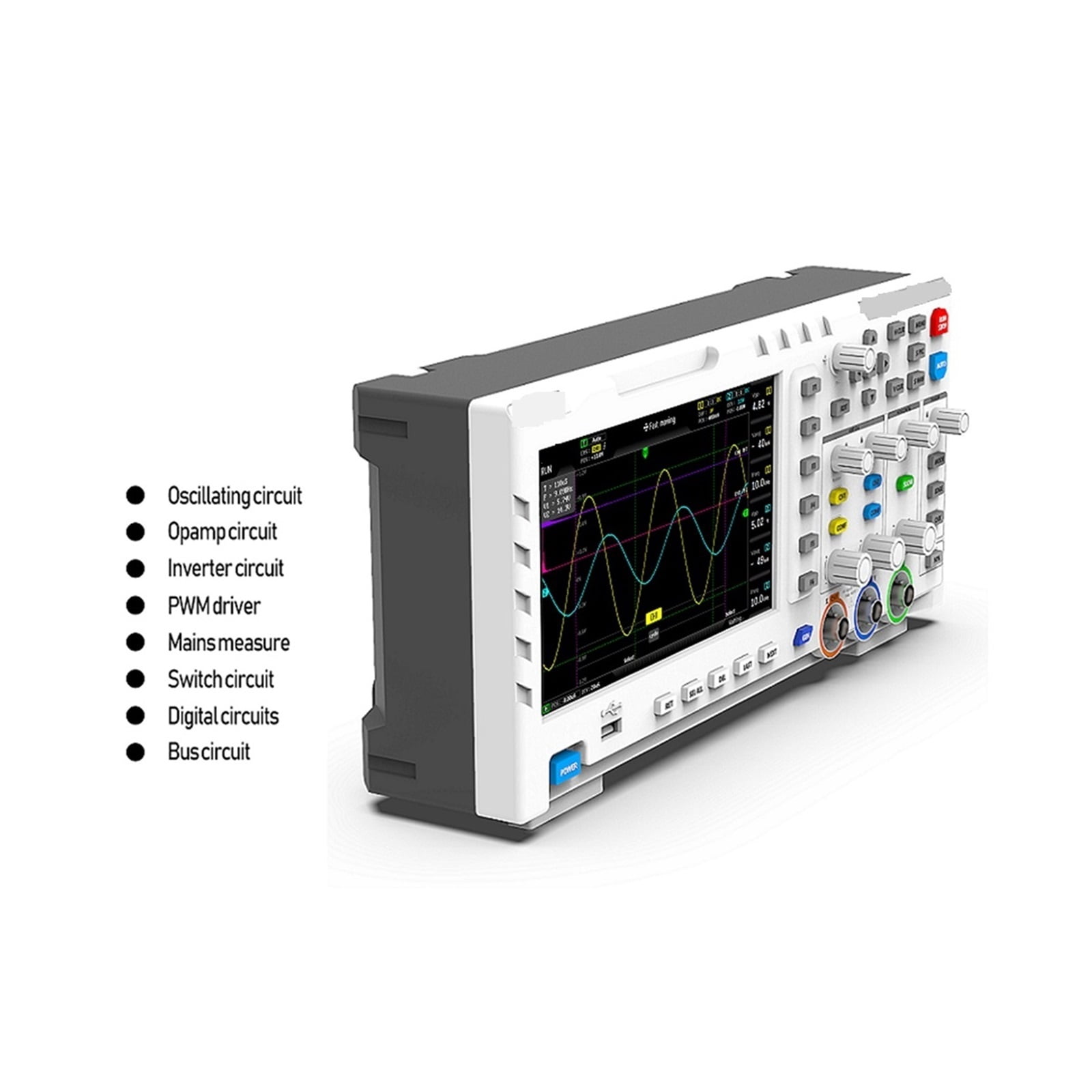

1014D Portable Digital Oscilloscope 2 In 1 Dual Channel Input Signal Generator Desktop Oscilloscope 1GSa/s Sampling Rate ,Professional Designed

<p>1014D is a two in one oscilloscope and signal generator, the real-time sampling rate is 1GSa / s and with 100MHz* 2 ana-log bandwidth, with 7inch TFT LCD display screenAll signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable chopping signal, chopping The output device intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized cut-off signals. </p><p></p><p>Features:</p><p>Complete triggering function (single, normal, automatic), and at any time, the waveform display (pause function) is frozen.</p><p>Equipped with One-button AUTO, and one-button waveform storage and screenshot function.</p><p>Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.</p><p>Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.</p><p>Equipped with a USB interface, which can be connected to a com-puter to share its screenshots with the com-puter, which is convenient for secondary analysis.</p><p>Display function, can analyze the spectral characteristics of the signal, memory compression technology, waveform refresh screen does not flicker.</p><p>With the screen brightness adjustment function and background gr-id brightness adjustment function, also easy to carry.</p><p></p><p>Specifications:</p><p>Material: ABS</p><p>Ana-log band width: 100MHz * 2</p><p>Number of channels: 2 channels</p><p>Maximum real time sampling rate: 1GSa/s</p><p>Horizontal time base range: 50S/div ~ 10nS/div</p><p>Storage depth: 240Kbit</p><p>Input resistance: 1M</p><p>ADC precision: 8bits</p><p>Coupling mode: AC/DC</p><p>Trigger mode: Single, Normal, Auto</p><p>Trigger edge: Rising edge/Falling edge</p><p>Extension ports: USB picture export</p><p>Power adapter: 5V 2A (no included)</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Built in signal generator, support 12 kinds of function signal.
• Capture output signal function, which can store up to 1000 capture signals.
• With 100MHz * 2 ana-log bandwidth and @ 1GSa/s sampling rate(1X = 5MHz, 10X = 100MHz).
• Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.
• Cursor measurement function: it is convenient to manually measure the period and frequency and voltage.
